High Temp Resistant Bellows Gripper MAB For Automatic Production Line

Brand Name : AMILA

Model Number : Bellows Suction Cups MAB HT1/HT2

Place of Origin : CHINA

MOQ : Negotiatable

Price : Negotiatable

Payment Terms : L/C, T/T

Supply Ability : Negotiatable

Delivery Time : Depending on the order quantity

Packaging Details : Carton package/Wooden cases

Suction area L×W : 30mm to 80 mm

Material : HT1,HT2

Highlight 1 : Wear-resistant

Highlight 2 : Vulcanizing fixed the suction cup and the joint

Application : For Automatic Production Line

Feature : High Temp Resistant

Contact Now

Vacuum Suction Cups Special For High-Temperature Bellows Gripper MAB HT1 HT2

1. Introduction and applicaton

  • Round bellows suction cup with 1.5 folds for handling planar and curved workpieces or thermoformed plates.MAB HT1 handling of hot metal sheets up to 170° C,MAB HT2 handling of hot metal sheets up to 250° C.
  • Suitable for the automatic production line, handling the preformed steel plate, and the wave can perfectly fit the surface of the workpiece.
  • The positioning of the handling process is accurate, and unloading of parts after forming.
  • Handling of thin aluminum sheets without deformation or deep drawing.
  • Provide extremely high lateral force grip in dusty and humid environments.

2. Structure

  • Wear-resistant material bellows suction cup with special pattern design and internal support structure;
  • Vulcanizing fixed the suction cup and the joint (high strength);
  • The surface design of the special structure provides a high performance gripping force;

3.Technology Data

Type Suction force Pull-off force Lateral force Volume Min. curve radius
[N] [N] [N] [cm3] [mm](convex)
MAB 30 HT1-60 22 33 30 5.9 40
MAB 40 HT1-60 38 59 36 7 40
MAB 50 HT1-60 53 87 55 11.5 50
MAB 60 HT1-60 82 130 82 24 65
MAB 80 HT1-60 135 221 145 56.5 75
MAB 100 HT1-60 190 357 220 92.5 90

Type Suction force Pull-off force Lateral force Volume Min. curve radius
[N] [N] [N] [cm3] [mm](convex)
MAB 30 HT2-65 22 33 29 5.6 40
MAB 40 HT2-65 38 59 34 7 40
MAB 50 HT2-65 53 91 102 18.9 25
MAB 60 HT2-65 82 136 126 32 30
MAB 80 HT2-65 135 238 217 75.4 40


4.Design data:

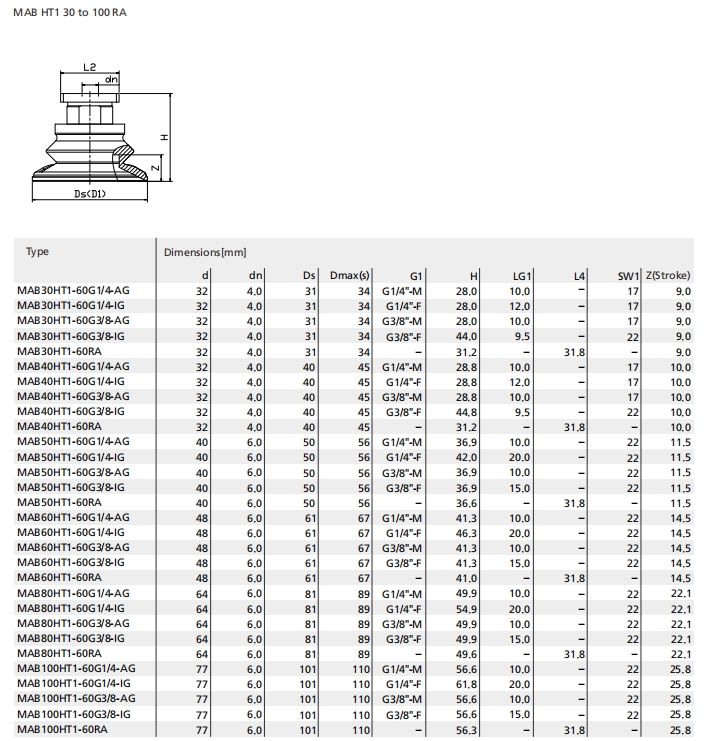

(1) HT1:

High Temp Resistant Bellows Gripper MAB For Automatic Production Line

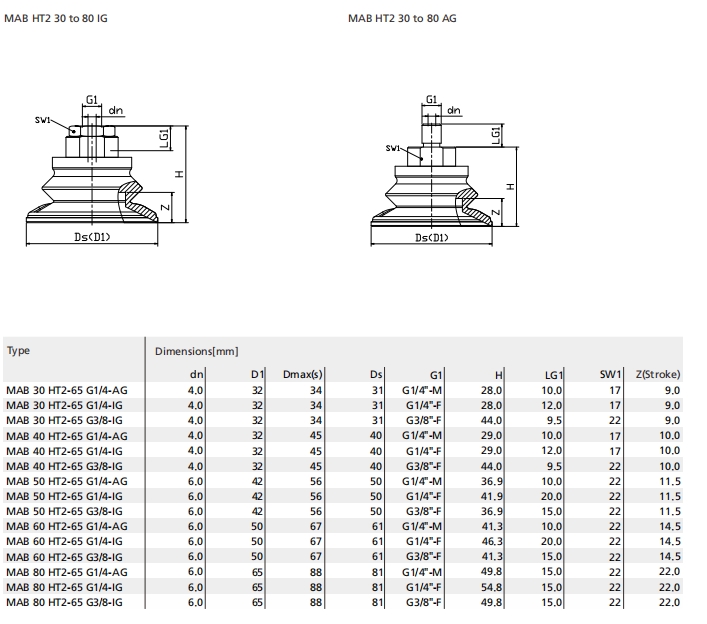

(2) HT2:

High Temp Resistant Bellows Gripper MAB For Automatic Production Line

Bellows Suction Cups MAB HT1-HT2.pdf
