Stainless Steel Suction Cup Fittings MTE-HD , Integrated Vacuum Import Type Spring Struts

Brand Name : AMILA

Model Number : Spring Buffer Strut MTE-HD

Place of Origin : CHINA

MOQ : Negotiatable

Price : Negotiatable

Payment Terms : L/C, T/T

Supply Ability : Negotiatable

Delivery Time : Depending on the order quantity

Packaging Details : Carton package/Wooden cases

Material : Stainless steel and brass

Connection : G1/8'' to G1/2''

Buffer stroke : 15 to 90mm

Highlight 1 : Suitable for heavy duty occasions

Highlight 2 : Integrated Vacuum Import

Model No. : MTE-HD

Contact Now

Vacuum Cup Fittings Spring Buffer Strut MTE-HD Stainless Steel With Brass

1. Introduction and application:

  • Carrying workpieces (such as curved metal sheet) with height difference in suction plane;
  • Handle pressure sensitive workpieces (such as glass) to ensure flexible contact.
  • Suitable for use under harsh working conditions.

2. Structure

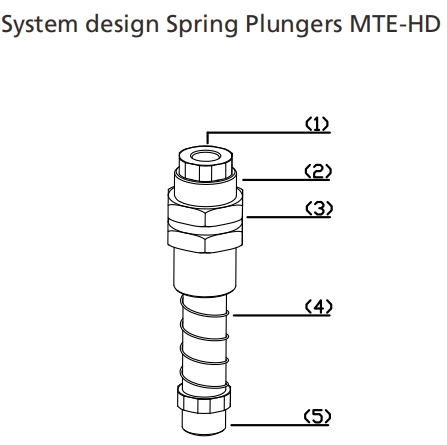

Stainless Steel Suction Cup Fittings MTE-HD , Integrated Vacuum Import Type Spring Struts

  • Spring plunger consisting of high strength stainless steel rod,brass sleeve with integrated bearing (2) and damping spring (4);
  • Plunger rod with integrated vacuum feed, always female connection thread (1);
  • For models with anti-rotation power, the stainless steel and bearing sleeve adopt matching planar structure.
  • For the thread (5) connecting the suction cup, the maximum size of the internal thread joint is usually M5 and the external thread have different specifications.
  • Two lock nuts (4) for attachment.

3. Technology Data:

Type Spring load rate Spring pretension Spring force Vertical load Horizontal load Weight Operating temperature
【N/mm】 【N】 【N】 【N】 【N】 【g】 【℃】
MTE-HD G1/8-AG 15 0.221 3.53 5.19 3700 385 80 0...80
MTE-HD G1/8-AG 15 VG 0.221 3.53 5.19 3700 385 80 0...80
MTE-HD G1/8-AG 25 0.143 3.57 5.36 3700 283 90 0...80
MTE-HD G1/8-AG 25 VG 0.143 3.57 5.36 3700 283 90 0...80
MTE-HD G1/8-AG 50 0.097 2.92 5.34 3700 173 110 0...80
MTE-HD G1/8-AG 50 VG 0.097 2.92 5.34 3700 173 110 0...80
MTE-HD G1/4-AG 25 0.711 6.47 15.36 2400 747 145 0...80
MTE-HD G1/4-AG 25 VG 0.711 6.47 15.36 2400 747 145 0...80
MTE-HD G1/4-AG 50 0.452 1.4 12.7 2400 466 175 0...80
MTE-HD G1/4-AG 50 VG 0.452 1.4 12.7 2400 466 175 0...80
MTE-HD G1/4-AG 75 0.262 5.38 15.2 2400 340 190 0...80
MTE-HD G1/4-AG 75 VG 0.262 5.38 15.2 2400 340 190 0...80
MTE-HD G3/8-AG 25 3.829 25.64 73.5 4800 1870 400 0...80
MTE-HD G3/8-AG 25 VG 3.829 25.64 73.5 4800 1870 400 0...80
MTE-HD G3/8-AG 75 1.072 37.2 77.4 4800 800 530 0...80
MTE-HD G3/8-AG 75 VG 1.072 37.2 77.4 4800 800 530 0...80
MTE-HD G3/8-AG 90 1.072 24.38 75.3 4800 730 545 0...80
MTE-HD G3/8-AG 90 VG 1.072 24.38 75.3 4800 730 545 0...80
MTE-HD G1/2-AG 25 3.289 25.64 73.5 4900 1870 400 0...80
MTE-HD G1/2-AG 25 VG 3.289 25.64 73.5 4900 1870 400 0...80
MTE-HD G1/2-AG 75 1.072 37.2 77.4 4900 800 530 0...80
MTE-HD G1/2-AG 75 VG 1.072 37.2 77.4 4900 800 530 0...80
MTE-HD G1/4-AG 90 VG 0.262 1.49 13.28 1500 300 210 0...80
MTE-HD G1/2-AG 90 1.072 24.38 75.3 4900 730 544 0...80
***Note:HD Heavy Duty AG External Thread VG with Anti-rotation Function

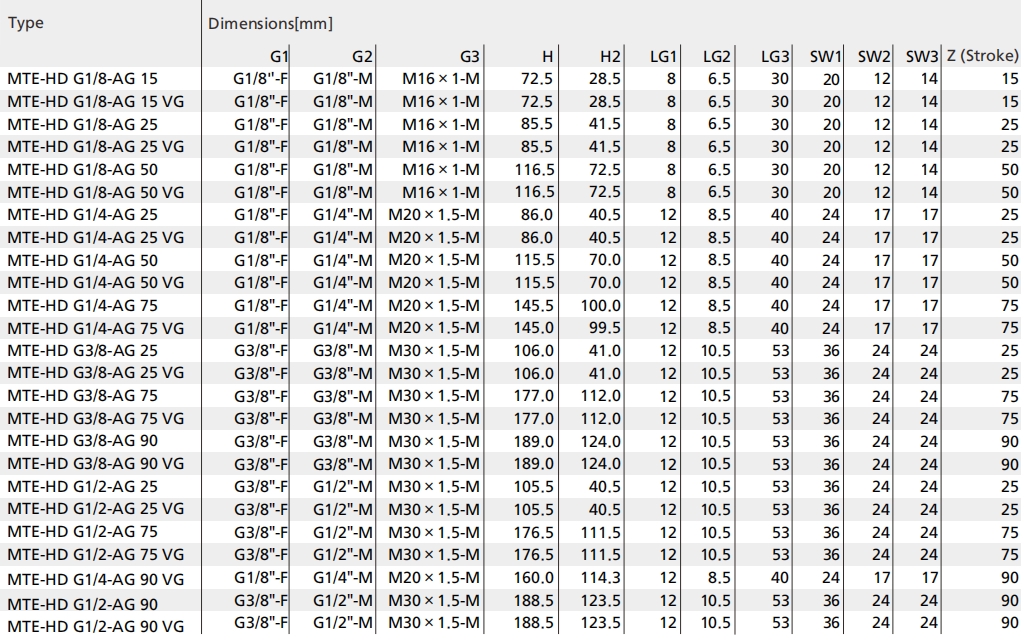

4. Design Data
